Drawing Rounded Isometric Shapes using Hexels

By Mark Knight

With Hexels 3.1 comes the addition of the Super Shape tool. Developed with full control and isometric drawing in mind, this incredible tool can be used with grid snapping and opens up possibilities that were previously a real Hexels head-scratcher.

Let’s take a quick look at how the Super Shape tool was used to create some of the objects in this isometric breakfast scene.

Setting Up

I painted various tabletop objects using pixel layers and the tablecloth on a vector layer. I was aiming for a high resolution with pixelated edges, so the Pixel Trixels 1080p template was ideal.

Let’s start with the striped mug. I created a new pixel layer and changed my background and grid colors in the Document tab for clarity. I changed the Brush Size and selected the Pixel Square brush from the drop-down brush preset menu.

The Super Shape Tool

The Super Shape tool (L) can be found under the shape tools sub-menu on the left toolbar.

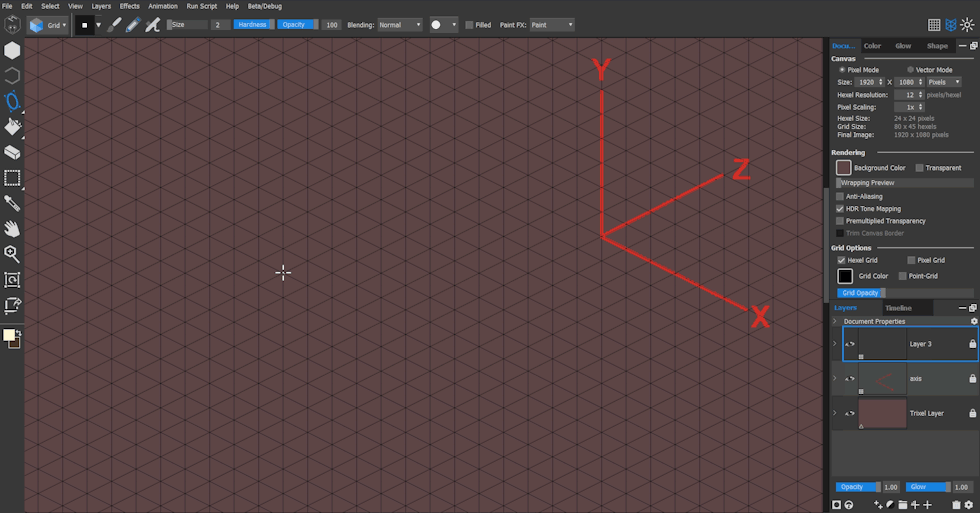

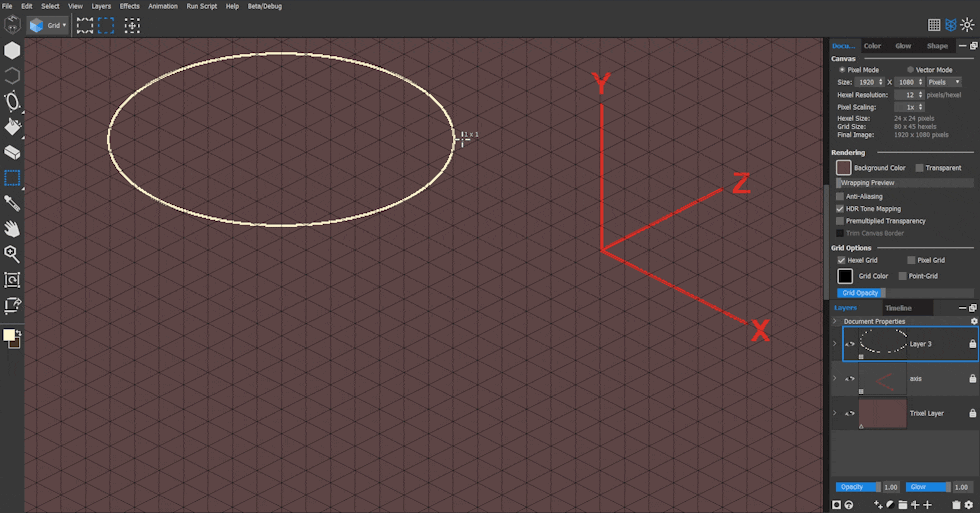

Holding Shift while drawing an Ellipse snaps the cursor to the grid. I clicked once and moved the cursor 5 trixels along the Z axis. This initial trixel line is the ellipse diameter. Before my second mouse click, I held down the Alt key to change the diameter line into the radius, doubling the diameter length. I performed the second mouse click and expanded the visible ellipse 5 trixels along the X axis before clicked again. The ellipse has blue control points that allow you to resize, move or scale the shape before committing. Pressing Enter confirms the shape.

Snapping Things into Place

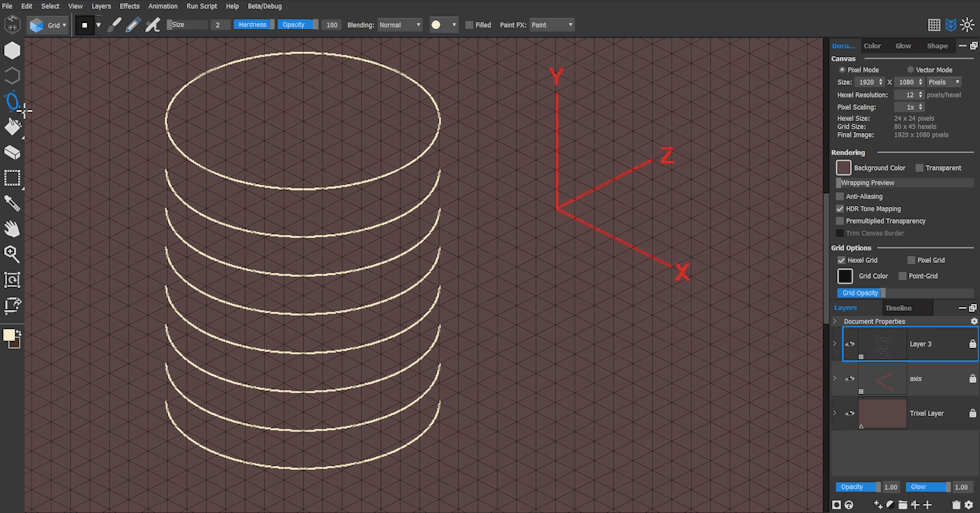

Using the Marquee Select tool (S), I copied and pasted the lower half of the ellipse seven times while holding shift to align each selection vertically. I positioned each curve at 2 trixel intervals.

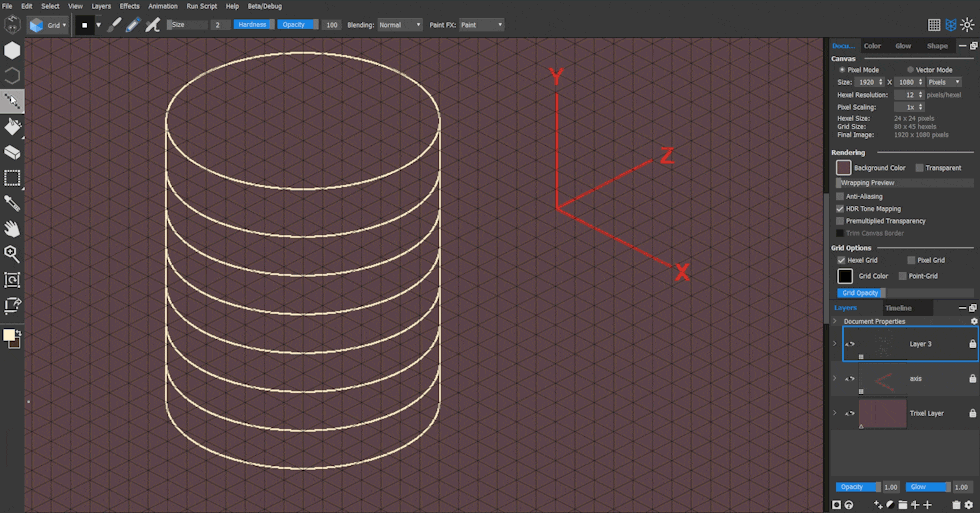

I switched to the Line tool (L) and added edges to the mug. Holding down Shift snaps the lines to the grid.

Returning to the Super Shape tool (L), I dragged a diameter horizontally and held down Alt to expand the ellipse vertically from the diameter center.

Creating the Coffee Mug

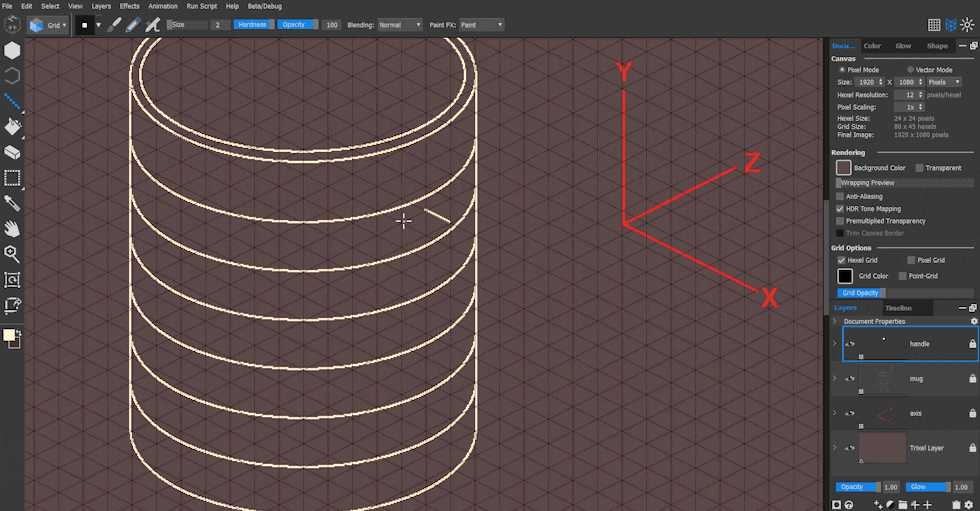

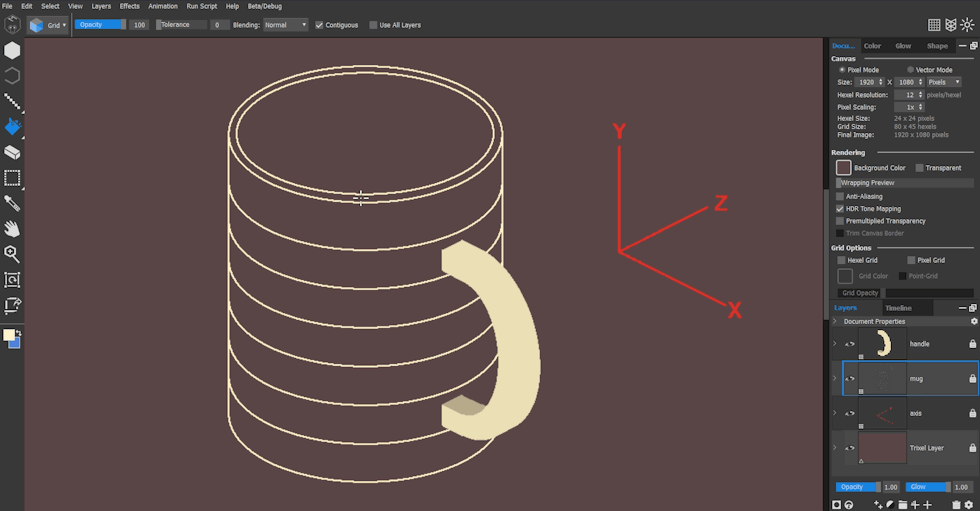

Using the Line tool (L) and Shift key grid snap, I created reference points for the mug handle ellipses. Clicking each of the two corresponding reference points, I dragged out the ellipse and deleted any unwanted areas with Marquee Select (S) and Backspace. I capped off the ends of the shape with the Line tool (L) and used the Fill tool (G) to fill the shape.

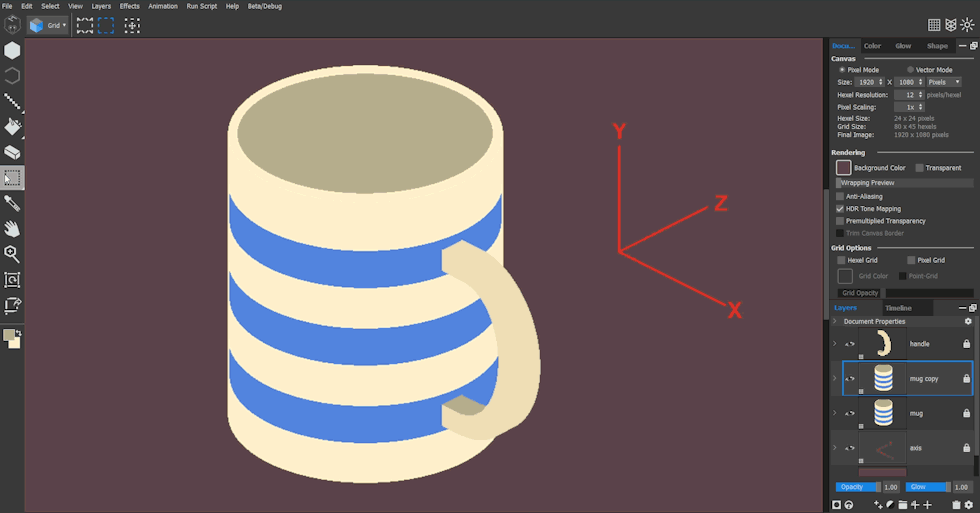

I used the Fill tool (G) to color the stripes around the mug.

To create the coffee, I duplicated the ‘mug’ layer and deleted all but the mug interior from the new layer. I used the Fill tool (F) to color the interior brown and re-positioned the selection slightly lower on the canvas. Reverting to the ‘mug’ layer, I re-selected the mug interior with the Magic Wand tool (S) and inverted the selection (Ctrl+Shift+I). I switched back to the new layer and used the Backspace key to delete the negative selection.

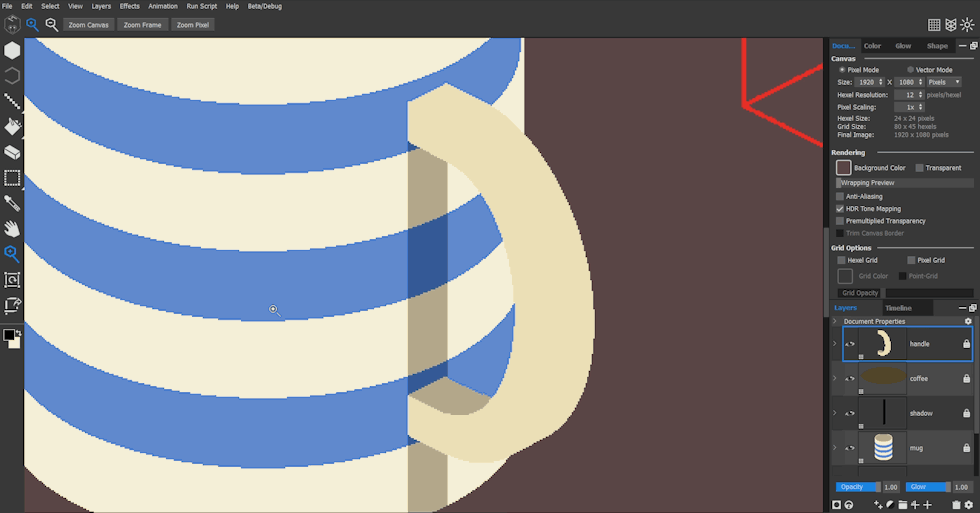

I drew a thick black line on a new layer and reduced the opacity for the shadow of the handle. The next step was to round off the handle ends. Using the Poly Select tool (S), I clicked multiple position points to create the curved edge of the handle. I closed my selection by double-clicking and pressed the Backspace key to delete.

The next step was to round off the handle ends. Using the Poly Select tool (S), I clicked multiple position points to create the curved edge of the handle. Once again, I closed my selection by double-clicking and pressed the Backspace key to delete.

Super Simple Torus

The techniques used to create the mug were utilized to create the other curved items in the scene. The following section is a brief overview of some of the other shapes found in the Super Shape tool (L).

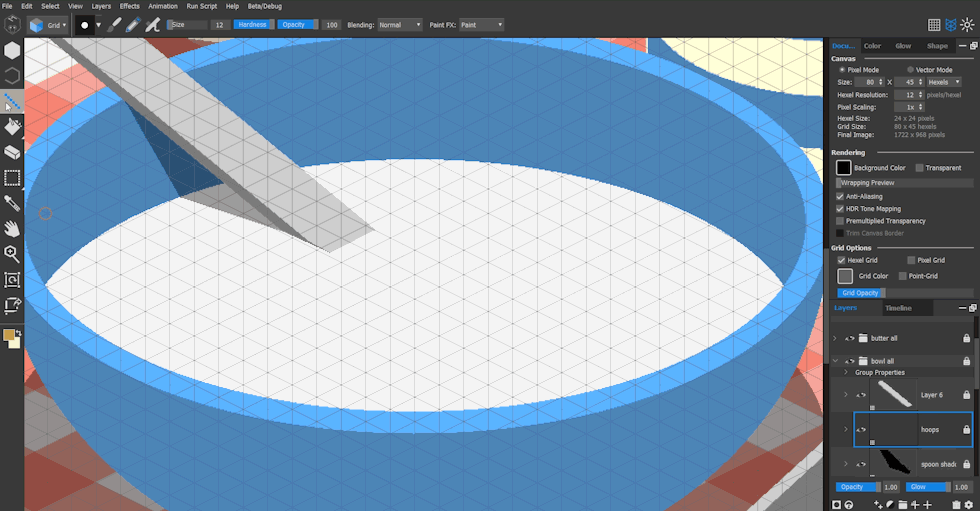

The cereal hoops required a torus looking shape. I used the Super Shape tool (L) to draw circles and increased the Line width to 12 while holding down Shift for grid snapping to create even 2×2 hoops on a pixel layer.

The half apple seen here can be broken down into three elliptical elements. The unwanted apple circumference and the interior ellipse overlap areas were erased. The Fill tool (G) was used to color the apple and the remaining details were drawn freehand on a pixel layer.

The Grand Finale

The shape tools introduced in Hexels 3.1 make drawing in isometric perspective very easy and incredibly fun. The flexibility of changing shapes and sizes on the fly allows for fearless creation and experimentation. Build your own geometric breakfast using the free 14-day trial of Hexels.
